2.9" 296×128 ePaper display module with SPI interface, three-colour (red, black, white)
Product number: 3C-EINKM-29
CHF 16.25
Available · 17 piece · 2-5 Tage
CHF 16.25
Customers also bought
Available · 100+ piece · 2-5 Tage
Available · 19 piece · 2-5 Tage
Available · 100+ piece · 2-5 Tage
Available · 4 piece · 2-5 Tage
Available · 56 piece · 2-5 Tage
Available · 21 piece · 2-5 Tage
Available · 24 piece · 2-5 Tage
Available · 100+ piece · 2-5 Tage
Available · 56 piece · 2-5 Tage
Available · 13 piece · 2-5 Tage
Available · 100+ piece · 2-5 Tage
Available · 14 piece · 2-5 Tage
Available · 100+ piece · 2-5 Tage
Available · 40 piece · 2-5 Tage
Available · 100+ piece · 2-5 Tage
Description
Product information "2.9" 296×128 ePaper display module with SPI interface, three-colour (red, black, white)"

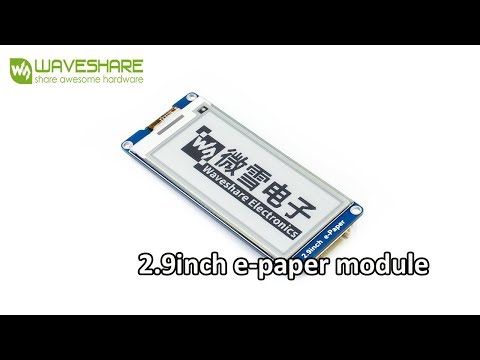

This is an E-Ink display module, 2.9inch, 296x128 resolution, with embedded controller, communicating via SPI interface, supports red, black, and white three-color display.
Due to the advantages like ultra low power consumption, wide viewing angle, clear display without electricity, it is an ideal choice for applications such as shelf label, industrial instrument, and so on.
Features
- No backlight, keeps displaying last content for a long time even when power down
- Ultra low power consumption, basically power is only required for refreshing
- SPI interface, for connecting with controller boards like Raspberry Pi/Arduino/Nucleo, etc.
- Comes with development resources and manual (examples for Raspberry Pi/Arduino/STM32)
Specifications
- Operating voltage: 3.3V
- Interface: 3-wire SPI, 4-wire SPI
- Outline dimension: 89.5mm × 38mm
- Display size: 66.89mm × 29.05mm
- Dot pitch: 0.138 × 0.138
- Resolution: 296 × 128
- Display colour: black, red, white
- Grey level: 2
- Full refresh time: 15s
- Refresh power: 26.4mV(typ.)
- Standby power: <0.17mV
- Viewing angle: >170°
Interface
| SYMBOL | DESCRIPTION |
| VCC | 3.3V |
| GND | Ground |
| DIN PIN | SPI MOSI pin |
| CLK | SPI SCK pin |
| CS | SPI chip selection, low active |
| DC | Data/Command selection (high for data, low for command) |
| RST | External reset, low active |
| BUSY | Busy status output, low active |
Scope of delivery
- 2.9inch e-Paper Module (B)
- Cable XH2.54 20cm 8Pin
Documentation / Downloads
Properties
| Zolltarifnummer: | 85285900 |
|---|---|
| Brand: | Waveshare |
| Country of Origin: | China |
| EAN: | 0614961950863 |
| Gross Weight (kg): | 0.031 |
| Manufacturer ID: | 2.9inch e-Paper Module (B) |
| Product ID: | 3C-EINKM-29 |
Manufacturer
Waveshare
Waveshare: High quality modules for your Raspberry Pi
Waveshare is a reliable specialist when it comes to displays, cameras and other modules for your Raspberry Pi. With the products of the innovative electronics expert, you can turn your computer into a true all-round device.
Waveshare provides an optimal view
You are looking for the ideal display module for your Raspberry Pi? At Berrybase you will find a wide range of products from Waveshare. Each display and all associated modules have been designed with the utmost precision and meet the highest demands - no matter what purpose the respective product is supposed to serve.
For example, the Waveshare ePaper HATs offer perfect conditions if you want a high display quality even in strong sunlight. A big advantage of ePaper displays is their extremely low energy consumption. The best example is the 2.13" 250×122 ePaper Display HAT with integrated controller, which is optimally tailored to the Raspberry Pi 2B, 3B, Zero and Zero W. The communication with this module is done via SPI interface. The ePaper display equipped with the HAT is limited to the colors black and white and reflects light like conventional paper. This is good for the display quality.
If you prefer a display in the three colors red, black and white to complement your Raspberry Pi, the 2.7" 264×176 ePaper Display HAT is recommended. It has the same technical features as the other Waveshare ePaper HATS.
Compact and of brilliant quality: The Waveshare 7 inch Display
The Waveshare 7 inch display, on the other hand, scores not only with its compact design, but also with a 1024x600 hardware resolution and capacitive touch control. On all devices with Raspberry Pi OS, the 7 inch LCD even works driver-free. The integrated 3.5mm jack enables sound output, while the image is produced via an HDMI connection. The impeccable quality manifests itself in a high-quality glass surface with a 6H hardness level.
At Berrybase, you can get the display including a robust case on request - so that it is optimally protected against external influences. Besides the Waveshare 7 inch display, the electronics specialist also has many other screens in different sizes available.
Waveshare Game HAT: Turning your Raspberry Pi into a game console
One of the top sellers at Berrybase is the Waveshare Game HAT for the Raspberry Pi. The controller transforms your computer into a mobile game console. The 3.5" IPS display convinces with a 480×320 resolution and ensures smooth image playback and thus unlimited gaming fun. The sound is reproduced via on-board speakers or optionally via the 3.5 mm jack socket. The battery of the Game HAT is charged via the integrated charging circuit. The module is compatible with the Raspberry Pi models A+, B+, 2B, 3B and 3B+. For other versions the connection via HDMI cable is possible.
If you want to turn your Raspberry Pi into a mobile retro console, we recommend the GamePi43 with a 4.3-inch IPS display, which is suitable for the Raspberry Pi models B+, 2B, 3B and 3B+, or the especially compact GamePi20. The latter features a 2.0-inch IPS display and is compatible with the Raspberry Pi Zero 1.3, Zero W as well as the Zero WH.
Practical accessories for every purpose
By the way: Waveshare's product range is also peppered with useful accessories for your Raspberry Pi. The Li-Ion battery HAT for example provides a mobile power supply for your computer. The 8 channel DIN rail relay module from Waveshare allows you to use your Raspberry Pi as a control module for tech projects in the home, for example to centrally control the home lighting or shutters. And with the Ethernet / USB HUB HAT, Waveshare has designed a module that extends the USB capability of your Raspberry Pi and provides an RJ45 Ethernet port. The latter offers an enormous added value when a stable wired Ethernet connection is required.
Manufacturer and safety information
Waveshare International Limited
2F, World Trade Plaza south side, Fuhong Rd
CN 518033 Futian District, Shenzhen
https://www.waveshare.com
support@waveshare.com
WEEE number: 72769965
Person responsible for the EU
Sertronics GmbH
Am Studio 20d
DE 12489 Berlin
https://www.berrybase.de
info@berrybase.de
Safety instructions
- Avoid direct contact with water, moisture and extreme temperatures.
- Protect the ePaper display from mechanical stress, impact and scratches.
- Avoid static discharges that could permanently damage the module.
- Only store and operate the product within the specified temperature ranges.
- Ensure that the ePaper Display is connected correctly to avoid damage due to incorrect polarity or overvoltage.
- Dispose of the ePaper Display in accordance with the regional regulations for electronic waste.
- Keep the module away from any corrosive chemicals or solvents.
- Do not disassemble or modify the product improperly.
- Keep out of the reach of small children, as small parts can be swallowed.
- Observe the recommended handling of flexible connections to avoid damage.
