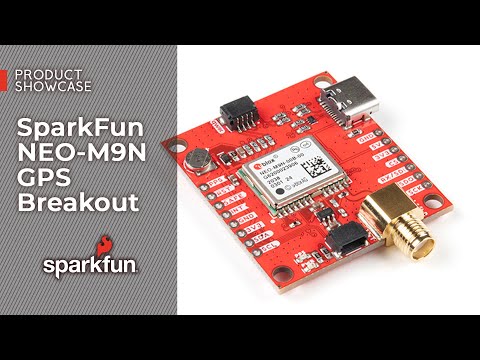

SparkFun Qwiic - GPS Breakout, NEO-M9N, SMA
Product number: GPS-17285
CHF 68.05
Available · 5 piece · 2-5 Tage
CHF 68.05
Customers also bought
Available · 100+ piece · 2-5 Tage
Available · 5 piece · 2-5 Tage
Available · 23 piece · 2-5 Tage
Available · 8 piece · 2-5 Tage
Available · 5 piece · 2-5 Tage
Available · 100+ piece · 2-5 Tage
Available · 100+ piece · 2-5 Tage
Available · 100+ piece · 2-5 Tage
Available · 100+ piece · 2-5 Tage
Available · 100+ piece · 2-5 Tage
Available · 100+ piece · 2-5 Tage
Available · 49 piece · 2-5 Tage
Available · 34 piece · 2-5 Tage
Available · 15 piece · 2-5 Tage
Available · 100+ piece · 2-5 Tage
Available · 6 piece · 2-5 Tage
Description
Product information "SparkFun Qwiic - GPS Breakout, NEO-M9N, SMA"
The NEO-M9N module detects jamming and spoofing events and can report them to the host so that the system can react to such events. The NEO-M9N module integrates a SAW (Surface Acoustic Wave) filter combined with an LNA (Low Noise Amplifier) in the RF path, which allows normal operation even in the presence of strong RF interference.
U-blox-based GPS products are configurable with the popular but dense Windows programme called u-center. Many different functions can be configured on the NEO-M9N: Baud rates, update rates, geofencing, spoofing detection, external interrupts, SBAS/D-GPS, etc. All of this can be done within the SparkFun Arduino Library!
The SparkFun NEO-M9N GPS Breakout is also equipped with an on-board battery that powers the RTC on the NEO-M9N. This reduces the time to first fix from a cold start (~24s) to a hot start (~2s). The battery maintains the RTC and GNSS orbit data over a long period of time even without power.
This product requires an antenna: Take a look at the associated products/connection accessories and select a suitable SMA antenna for your project.
Features:
- Integrated SMA connector for use with an antenna of your choice
- 92-channel GNSS receiver
- 1.5m horizontal accuracy
- 25Hz maximum update rate (four simultaneous GNSS)
- Time-To-First-Fix
- Cold: 24s
- Hot: 2s
- Max. Altitude: 80.000m
- Max G: ?4
- Max speed: 500m/s
- Speed accuracy: 0.05m/s
- Heading accuracy: 0.3 degrees
- Time pulse accuracy: 30ns
- 3.3V VCC and I/O
- Power consumption: ~31mA Tracking GPS+GLONASS
- Software configurable
- Geofencing
- Odometer
- Spoofing detection
- External interrupt
- Pin control
- Low power mode
- Many others!
- Supports NMEA, UBX and RTCM protocols via UART or I2C interfaces
- Get Started With the SparkFun NEO-M9N GPS Guide
- Wiring Diagram
- Eagle files
- Board dimensions
- Connection instructions
- Structure of a GPS system
- Data sheet (NEO-M9N)
- Product overview
- Integration manual
- u-blox Protocol Specification
- NEO-M9M Documents & Resources
- u-center Software
- SparkFun u-blox GNSS Arduino Library
- GitHub Hardware Repo
Properties
| Zolltarifnummer: | 85299020 |
|---|---|
| Brand: | SparkFun |
| Country of Origin: | USA |
| EAN: | 845156011087 |
| Gross Weight (kg): | 0.011 |
| Manufacturer ID: | GPS-17285 |
| Product ID: | GPS-17285 |
Manufacturer and safety information
SparkFun Electronics
6333 Dry Creek Parkway
DE CO 80503 Niwot
https://www.sparkfun.com
support@sparkfun.com
WEEE number: 17968585
Person responsible for the EU
Sertronics GmbH
Am Studio 20d
DE 12489 Berlin
https://www.berrybase.de
info@berrybase.de
Safety instructions
- Before commissioning the GPS/GNSS module, check all connections carefully to avoid short circuits.
- Protect the device from moisture, extreme temperatures and other environmental influences.
- Only use with the specified operating voltage and the specified components.
- During installation, ensure that the antenna has a clear view of the sky to guarantee optimum signal quality.
- Handle components with care to avoid damage caused by electrostatic discharge (ESD).
- Do not use in the vicinity of strong magnetic or electromagnetic fields.
- At the end of its service life, dispose of it in an environmentally friendly manner and in accordance with local regulations.
- Do not dispose of electronic components with household waste, but take them to an appropriate collection point.
