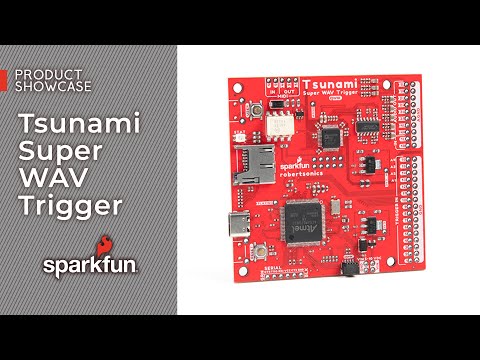

SparkFun Qwiic - Tsunami Super WAV Trigger
Product number: WIG-18159
CHF 99.85
Available · 8 piece · 2-5 Tage
CHF 99.85
Customers also bought
Available · 100+ piece · 2-5 Tage
Available · 74 piece · 2-5 Tage
Available · 96 piece · 2-5 Tage
Available · 1 piece · 2-5 Tage
Available · 100+ piece · 2-5 Tage
Available · 4 piece · 2-5 Tage
Available · 100+ piece · 2-5 Tage
Available · 100+ piece · 2-5 Tage
Available · 100+ piece · 2-5 Tage
Available · 97 piece · 2-5 Tage
Description
Product information "SparkFun Qwiic - Tsunami Super WAV Trigger"
The big news is that the Tsunami has eight audio output channels, arranged as either eight mono or four stereo pairs. The alternative versions of the firmware support either the mono or stereo architecture - the choice is yours. The mono version offers a new "synced set" trigger function that allows up to eight mono tracks to be started on neighbouring outputs. These tracks start and remain sample-synchronised to play stereo or even 5.1 or 7.1 surround sound content with a single trigger. Each track can be dynamically routed to any output. And each output offers independent real-time volume and sample rate conversion (pitch bend). Full Arduino and Python libraries are also available for the Tsunami, which can be found under the Documents tab!
Each Tsunami Super WAV Trigger has a dedicated MIDI port with an integrated opto-isolator, making it easy to connect to any MIDI controller. Tsunami's MIDI implementation includes control of volume, pitch bend, attack and release times and the ability to route any MIDI key to any of the output channels as well as specify single-shot or loop playback per key. It is very important to note that this is a 3.3V device, and its inputs - including trigger and serial RX - are not 5V tolerant!
Note: The Tsunami Super WAV Trigger will only function correctly if the uSD card is formatted with the correct file size (32Kb). If this is set incorrectly during formatting, the Tsunami shows very erratic behaviour and occasionally crashes.
Features:
- Supports up to 4096 uncompressed 16-bit, 44.1kHz mono or stereo WAV files ? CD quality
- Polyphonic ? Playback and mix 32 mono or 18 stereo tracks independently and simultaneously
- Eight audio output channels that can be arranged as 4 stereo outputs. Route any track to any output
- Outputs offer independent real-time playback rate control and MIDI pitch bend
- Seamless looping over any track length
- Delay between trigger and sound: 8 msecs typical, 12 msecs max
- Pause and resume individual or groups of tracks
- Multiple randomised trigger ranges
- 16 trigger inputs are individually selectable for contact closure or 3.3V control
- Trigger inputs can be individually inverted (active low or high)
- Trigger inputs can be individually set as edge-, latch- or level-sensitive
- Output volume adjustable from +10dB to -70dB
- Firmware track crossfades (attacks & decays)
- A dedicated digital "play" status output pin
- Comprehensive serial control. Pin compatible with SparkFun FTDI Basic 3.3V
- MIDI velocity-sensitive triggering of up to 4096 tracks, adjustable attack and release times
- USB-C and PTH inputs for power supply
- Qwiic connector
Properties
| Zolltarifnummer: | 85340090 |
|---|---|
| Brand: | SparkFun |
| Country of Origin: | USA |
| EAN: | 4060137072338 |
| Gross Weight (kg): | 0.024 |
| Manufacturer ID: | WIG-18159 |
| Product ID: | WIG-18159 |
