SparkFun RedBoard Edge
Product number: DEV-14525
CHF 29.70
Available · 15 piece · 2-5 Tage
CHF 29.70
SparkFun RedBoard Edge
Order now and secure 15 Berrys
Description
Product information "SparkFun RedBoard Edge"

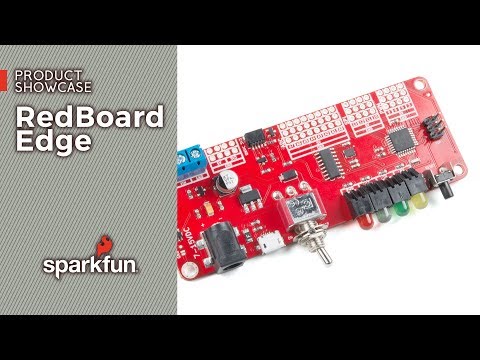

The SparkFun RedBoard Edge is a nifty little redesign of the SparkFun RedBoard, designed to fit into a custom project enclosure to provide an easy way to create a clean, finished looking product. It has all the features of a normal RedBoard and is just as easy to use. You can even create a prototype on a RedBoard and move your project to a RedBoard Edge simply and easily. If you are looking for an excellent learning platform for physical computing, the SparkFun RedBoard Edge is still an up-to-date choice!
With the RedBoard Edge, we have redesigned the original RedBoard so that everything that is "user-side" is on one side of the board and everything that is "project-side" is on the other side of the board. On the user side are the 2.1 mm jack socket, a micro USB port, a right-angled power switch, four status LEDs (RX, TX, pin 13, & PWR) and a reset button. On the project side, there is a 2-port screw connector, a Qwiic connector, and pins grouped by function (PWM, ADC, SPI), with power rails for 5V and ground running parallel to each grouping. There are also 4-pin power rails for 5V and 3.3V right next to the 5mm 2-pin screw connector, which is connected to VIN via the toggle switch on the front of the board. One of the coolest things about the RedBoard Edge is the ability to ground the board to the chassis via the standoffs next to the jack and screw connector. You can choose to connect the chassis ground to the USB shield, the board ground, or both!
Like the SparkFun RedBoard, the RedBoard Edge can be programmed with the Arduino IDE via a micro USB cable: Simply plug in the board, select "Arduino UNO" from the board menu and you're ready to upload code. The Edge can be operated with a voltage of 7 to 15VDC and you can supply it with power via USB or via the socket.
Features:
With the RedBoard Edge, we have redesigned the original RedBoard so that everything that is "user-side" is on one side of the board and everything that is "project-side" is on the other side of the board. On the user side are the 2.1 mm jack socket, a micro USB port, a right-angled power switch, four status LEDs (RX, TX, pin 13, & PWR) and a reset button. On the project side, there is a 2-port screw connector, a Qwiic connector, and pins grouped by function (PWM, ADC, SPI), with power rails for 5V and ground running parallel to each grouping. There are also 4-pin power rails for 5V and 3.3V right next to the 5mm 2-pin screw connector, which is connected to VIN via the toggle switch on the front of the board. One of the coolest things about the RedBoard Edge is the ability to ground the board to the chassis via the standoffs next to the jack and screw connector. You can choose to connect the chassis ground to the USB shield, the board ground, or both!
Like the SparkFun RedBoard, the RedBoard Edge can be programmed with the Arduino IDE via a micro USB cable: Simply plug in the board, select "Arduino UNO" from the board menu and you're ready to upload code. The Edge can be operated with a voltage of 7 to 15VDC and you can supply it with power via USB or via the socket.
Features:
- ATmega328 microcontroller with Optiboot (UNO) bootloader
- Input voltage - 7-15V
- 0-5V outputs with 3.3V compatible inputs
- 14 digital I/O pins (6 PWM outputs)
- 6 analogue inputs
- ISP pin header
- 32k flash memory
- 16MHz clock frequency
- Panel mounting design
- Micro-USB connector
- Qwiic connector
Properties
| Zolltarifnummer: | 85423100 |
|---|---|
| Brand: | SparkFun |
| Country of Origin: | USA |
| EAN: | 5904422319090 |
| Gross Weight (kg): | 0.026 |
| Manufacturer ID: | DEV-14525 |
| Product ID: | DEV-14525 |
Manufacturer and safety information
Manufacturer information
SparkFun Electronics
6333 Dry Creek Parkway
DE CO 80503 Niwot
https://www.sparkfun.com
support@sparkfun.com
WEEE number: 17968585
Responsible person for the EU
Sertronics GmbH
Am Studio 20d
DE 12489 Berlin
https://www.berrybase.de
info@berrybase.de
Safety instructions
SparkFun Electronics
6333 Dry Creek Parkway
DE CO 80503 Niwot
https://www.sparkfun.com
support@sparkfun.com
WEEE number: 17968585
Responsible person for the EU
Sertronics GmbH
Am Studio 20d
DE 12489 Berlin
https://www.berrybase.de
info@berrybase.de
Safety instructions
- Only work in a dry environment and avoid contact with liquids.
- Avoid direct skin contact with components during operation to prevent burns.
- Only connect the board to the specified power source; overloading can cause damage.
- Only use the board with compatible devices to avoid malfunctions.
- Keep all connection cables tidy and avoid short circuits.
- Do not operate unattended in the vicinity of highly flammable materials.
- Do not make any changes to the circuits when the appliance is switched on.
- Dispose of the product in accordance with the electronic waste regulations of your region.
- Dispose of used or defective components at special collection points for electronic waste.
- Protect the board from static discharges to prevent malfunctions.
