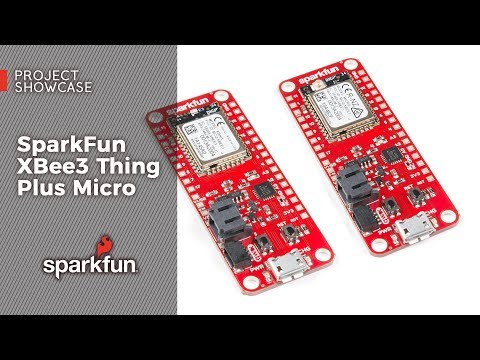

SparkFun Thing Plus - XBee3 Micro, U.FL
Product number: WRL-15435
CHF 67.25
Available · 8 piece · 2-5 Tage
CHF 67.25
SparkFun Thing Plus - XBee3 Micro, U.FL
Order now and secure 34 Berrys
Description
Product information "SparkFun Thing Plus - XBee3 Micro, U.FL"
The XBee3 Thing Plus is an extremely powerful and easy entry into wireless device development. The combination of XBee and Qwiic in a space-saving design is a much-needed update to our XBee offering. With 20 I/O pins and lithium polymer ion battery management, the XBee3 Thing Plus has all the basics for rapid prototyping or developing a connected device such as a remote sensor. The Qwiic connector and JST connector for the battery allow for a solderless option when working with the board, reducing setup time.
The new XBee3 Micro module offers the classic 2.4 GHz 802.15.4 (Zigbee 3.0 protocol) wireless connectivity that makes it so desirable, but with the new addition of being programmable with MicroPython (32 KB memory available for this). RF data rates up to 250 Kbps and ranges of 200ft indoors and up to 4000ft line of sight outdoors. The module is communicated/configured via an AT command set or the Digi API, X-CTU, both locally and over-the-air. There is now even a mobile version of X-CTU; Digi XBee® Mobile.
This variant has a U.FL antenna connector for longer range communication.
Features:
The new XBee3 Micro module offers the classic 2.4 GHz 802.15.4 (Zigbee 3.0 protocol) wireless connectivity that makes it so desirable, but with the new addition of being programmable with MicroPython (32 KB memory available for this). RF data rates up to 250 Kbps and ranges of 200ft indoors and up to 4000ft line of sight outdoors. The module is communicated/configured via an AT command set or the Digi API, X-CTU, both locally and over-the-air. There is now even a mobile version of X-CTU; Digi XBee® Mobile.
This variant has a U.FL antenna connector for longer range communication.
Features:
- XBee3 Micro Module
- Silicon Labs EFR32MG SoC
- 250Kbps RF, 1Mbps serial data rates
- Indoor/urban range up to 60 metres
- Outdoor/RF line of sight range up to 1200 m (4000 ft)
- +8 dBm transmit power
- -103 dBm Receiver sensitivity
- UART, I2C, SPI interfaces (SPI currently not available, but broken out on the board)
- ISM 2.4GHz frequency band (802.15.4)
- 1MB memory, 128KB RAM (32KB available for MicroPython)
- 20 GPIO pins
- Configurable via X-CTU or AT command set both via USB and wireless (second XBee 3 device required for wireless configuration unless you use the mobile app)
- Qwiic compatible
- On-board charging circuit and connector for 3.3V lithium polymer ion batteries (see related products for compatible batteries)
- 2.6VDC - 3.6VDC supply voltage
- U.FL antenna connector
Properties
| Zolltarifnummer: | 85176200 |
|---|---|
| Brand: | SparkFun |
| Country of Origin: | USA |
| EAN: | 845156009794 |
| Gross Weight (kg): | 0.007 |
| Manufacturer ID: | WRL-15435 |
| Product ID: | WRL-15435 |
Manufacturer and safety information
Manufacturer information
SparkFun Electronics
6333 Dry Creek Parkway
DE CO 80503 Niwot
https://www.sparkfun.com
support@sparkfun.com
WEEE number: 17968585
Person responsible for the EU
Sertronics GmbH
Am Studio 20d
DE 12489 Berlin
https://www.berrybase.de
info@berrybase.de
Safety instructions
SparkFun Electronics
6333 Dry Creek Parkway
DE CO 80503 Niwot
https://www.sparkfun.com
support@sparkfun.com
WEEE number: 17968585
Person responsible for the EU
Sertronics GmbH
Am Studio 20d
DE 12489 Berlin
https://www.berrybase.de
info@berrybase.de
Safety instructions
- Use the Dev. Board only in accordance with the instructions and technical specifications.
- Keep the board away from liquids, moisture and extreme heat.
- Avoid static discharges and use appropriate ESD protection measures if necessary.
- Never work on the electrical wiring while the board is connected to a power source.
- Only allow children to work with the device under supervision as it contains small parts.
- Dispose of the product in an environmentally friendly manner at a recognised recycling centre for electronic devices.
- Observe local regulations for the disposal of electronics and batteries.
